适用于制药厂针剂安瓿、西林瓶、口服液等药用玻璃瓶的烘干灭菌，具有升温快、热分布均匀、结构紧凑、操作简单 等特点。整个系统采用PLC控制，具备工艺过程显示、数据及运行记录、故障显示等功能，达到升温、保温、排湿、排风 自动程序控制。
It is suitable for drying sterilization of injection ampoules, Xylin bottles, oral liquid and other medicinal glass bottles in pharmaceutical factories. It has the characteristics of fast heating, uniform heat distribution, coMPact structure and simple operation. The whole system adopts PLC control, with the process display, data and operation record, fault display and other functions, to achieve automatic program control of temperature, heat preservation, moisture drainage and air exhaust vials.

1.DMH系列净化对开门干燥灭菌烘箱， 适用于制药行业的西林瓶、安瓿瓶、铝盖、金属及玻璃器皿件灭菌去热原和 固体物料干燥灭菌。
2.DMH系列净化对开门烘箱，是我公司近几年开发研制的最新一代产品，在国内数百家制药企业均已通过“GMP” 认证。本设备控制系统先进灵敏、配备的可编程序控制器PLC人机界面触摸屏、微压差计、自动排湿阀门及特殊境使用易 燃气体浓度测试仪等一批关键件均为日本、美国及中国台湾产。使烘箱的质量得到了保障。完美的百级流净化系统符合了 “GMP”规范要求。
3.DMH系列产品可供用户选择，在配置和尺寸方面也可根据用户用途、场地、产量等订制。
4.工作原理：将装满物料的烘盘、瓶子或小车放入箱内，启动PLC可编程序控制系统，内循环风机工作、加热、蝶阀 同时开启、干燥箱迅速升温。在内循环风机作用下， 于热空气通过耐高温高效过滤器进入箱体， 在微孔调节作用下形成一 个均匀分布空气向箱体内传递，干燥空气吸收瓶子(物料、物品)表面的水分，进入加热通道蒸发排出、干空气在风机作用 下定向循环流动， 水蒸汽排出。随着水蒸汽逐渐减少、同时间隙性补充新鲜过滤空气， 箱体内呈正压状态， 恒温结束， 过 程控制完毕。开启送风或(进水)强制冷却，自动蝶阀进入关闭状态，声光提示开门出瓶。

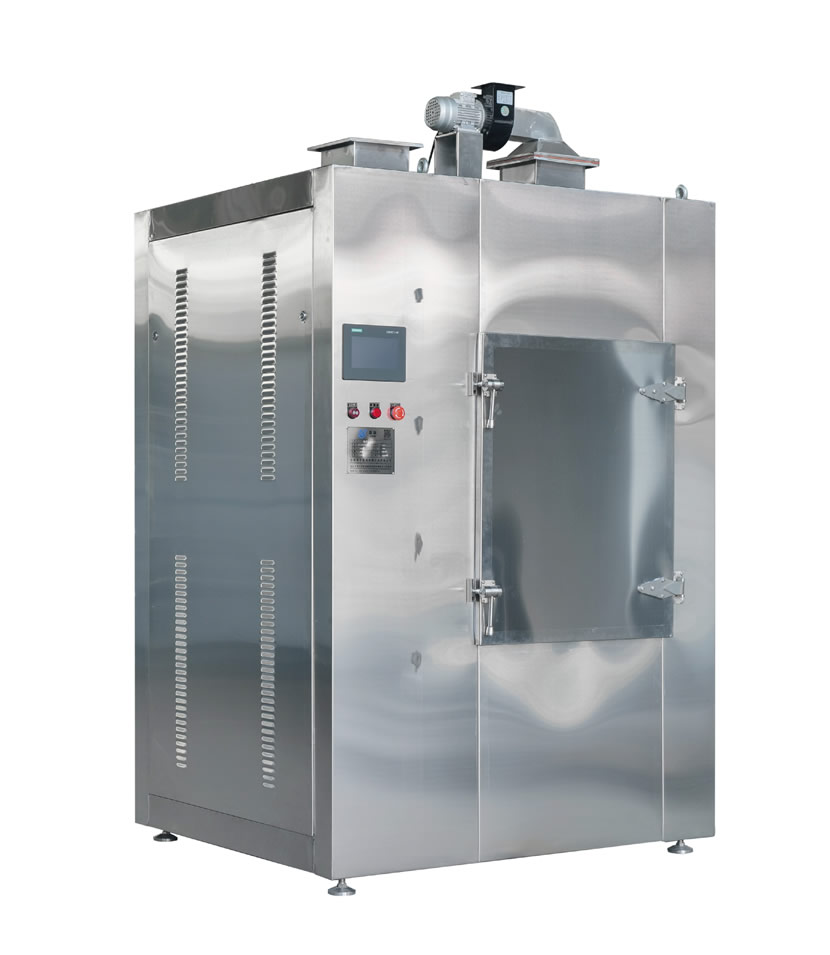

1.DMH series purification drying and sterilization oven is suitable for sterilization of Xeline bottles, ampoules, aluminum caps, metal and glassware parts and drying and sterilization of solid materials in pharmaceutical industry.
2.DMH series purification oven is the latest generation of products developed by our coMPany in recent years, and hundreds of pharmaceutical coMPanies in China have passed the "GMP" certification. The advanced and sensitive control system of this equipment, equipped with programmable controller PLC man-machine interface touch screen, micro-pressure differential meter, automatic moisture discharge valve and flammable gas concentration tester for special use are all made in Japan, the United States and Taiwan. The quality of the oven is guaranteed. The perfect 100-stage flow purification system meets the requirements of "GMP" specification.
3.DMH series products are available for users to choose, in terms of configuration and size can also be customized according to user use, site, output and so on.
4. Working principle: Put the drying tray, bottle or car filled with materials into the box, start the PLC programmable control system, the internal circulation fan works, heating, butterfly valve opens at the same time, and the drying oven heats up rapidly. Under the action of the internal circulation fan, the hot air enters the box through the high temperature and high efficiency filter, and forms a uniform distribution of air to the box under the action of microhole regulation, the dry air absorbs the water on the surface of the bottle (materials, articles), evaporates into the heating channel, and the dry air flows in the directional circulation under the action of the fan, and the water steam is discharged. With the gradual reduction of water steam and the addition of fresh filtered air at the same time, the box is in a positive pressure state, the constant temperature is ended, and the process control is completed. Open the air supply or (water) forced cooling, automatic butterfly valve into the closed state, sound and light prompt the door out of the bottle.
